Matteuzzi Group

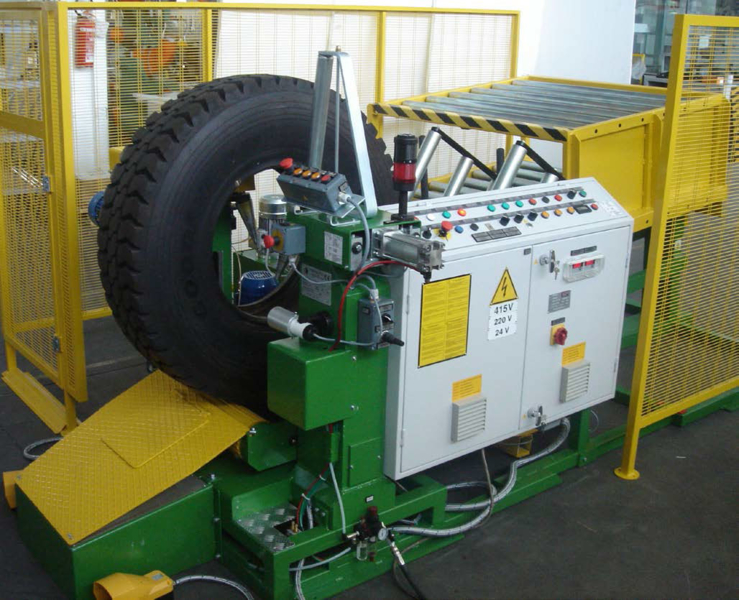

540/P-2/PLC, AUTOMATIC SPREADING MACHINE

designed to visually check the internal and external surface of truck tyres

ISO 9001

Description

Designed to visually check the internal and external surface of truck tyres.

The machine performs the various operations automatically by following three working cycles, each of which corresponds to a group of tyre sizes.

  • Tyre range from 7.00-16” to 13 R 22.5” (15 R 22.5”, 24” and 24.5” included)
  • Floor to floor average output 40 tyre casings per hour
  • compressed air supply 6 ÷ 7 bar (90÷105 PSI)
  • compressed air absorption 50 Nl per cycle
  • total installed power 4 HP (3 KW). approx.
  • net weight 1400 kg. approx
PDF Brochure Download Request Information
