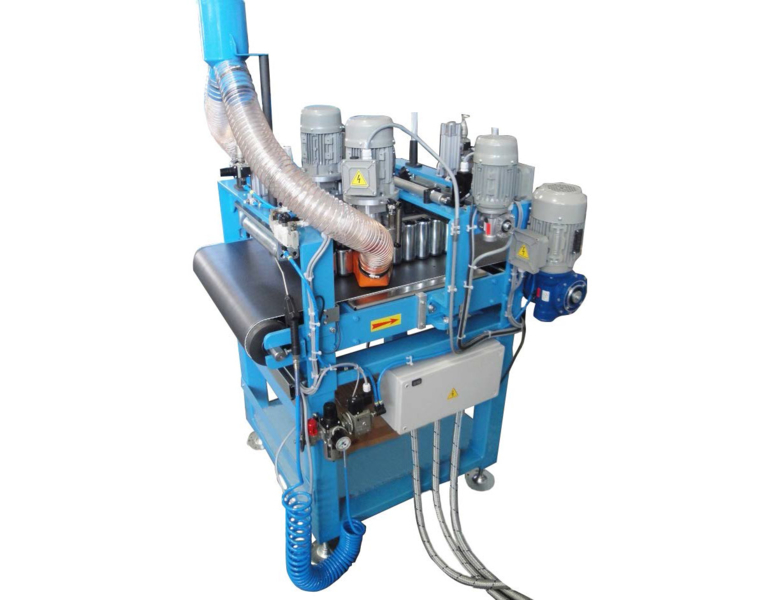

LINER 350, UNIT TO SAND PRECURED TREAD SIDES

Machine suitable for precured tread strips of 4 m. or longer.

ISO 9001

Description

Max. tread width 500 mm.

Precured tread is moved by a variable speed conveyor.
Average speed 11 m./min. 0.5 HP motor.
Tools: 2 carbide tools dia. 100 x 38 mm
2 motors for carbide tool control: 0.5HP, 2 poles ea.
Compressed air supply 6 - 8 bar 90 - 120 PSI.
Compress. air absorption
130 Nl/cycle (4.60 cu ft/cycle)
Net weight 1080 lbs.
